The features of the cameras that we suggest are shown below.
1. Camera’s Options:
The choice of the exact camera depends on the camera placement, to ensure the best view
angle.

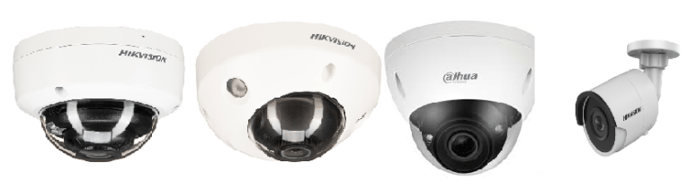

1) PUSHIT Suggested models:
● Hikvision DS-2CD2025FHWD-I (2.8mm)_High Frame rate
https://www.hikvision.com/en/products/IP-Products/Network-Cameras/Pro-
Series-EasyIP-/DS-2CD2025FHWD-I
● Hikvision DS-2CD2125FHWD-I(S)_High Frame rate
https://assets.hikvision.com/prd/public/all/doc/sm000058797/DS-2CD2125F
HWD-IS_Datasheet_V5.6.0_20220609.pdf
● Dahua IPC-HDBW5541R-ASE (2.8mm)_High Frame rate
https://material.dahuasecurity.comIPC-HDBW5541R-ASE_datasheet_202207
15.pdf
● Hikvision DS-2CD2547G2-LS (2.8mm) Wide Angle
https://www.bhphotovideo.com/c/product/1695935-REG/hikvision_ds_2cd
2547g2_ls_2_8mm_ds_2cd2547g2_ls_colorvu_4mp_network.html
● Hikvision DS-2CD2147G2-LSU-C (2.8mm) Wide Anglehttps://www.bhphotovideo.com/c/product/1703472-REG/hikvision_ds_2cd
2147g2_lsu_2_8mm_colorvu_ds_2cd2147g2_lsu_4mp_outdoor.html
● DS-2CD2543G2-I(2mm) Wide Angle
https://www.hikvision.com/en/products/IP-Products/Network-Cameras/Pro-
Series-EasyIP-/ds-2cd2543g2-i-ws-/?subName=DS-2CD2543G2-I
2) *Budget option, in case the camera can be installed at least 1 meter (~4 feet)
behind the court, the following models are also an option:
● Hikvision DS-2CD2143G0-I(S)
https://www.amazon.com/Hikvision-DS-2CD2143G0-I-
● Dahua- DH-IPC-HDW1239T1-LED-S5
https://www.dahuasecurity.com/asset/upload/uploads/soft/20210708/DH-I
PC-HDW1239T1-LED-S5-datasheet.pdf
General Specifications for any other Camera Brand and model:
● Dome/turret/ bullet camera.
● IP, POE CAMERA
● >2MP
● 2.8 MM length
● Minimum 30 fps
● RTSP.
● Field of view: 103' (H) and above. Ideally 108’ -120’.
Field of view 58’ (V) and above. Ideally 60’ >.
Universal mount bracket pole example
2) Network devices for cameras’ connection:
*We suggest using Tp-link or Netgear switch devices.
**Please contact us to get a customized IT plan, or to cosolute for the best solution for your club and to understand better the network devices plan.
